YOTENKO 4G Cellular LTE 5dBi Multi-Band Antenna (12", N Jack Connector) + 10FT Low Loss YMR240 Cable, Omni Antenna Kit
YOTENKO 4G Cellular LTE 5dBi Multi-Band Antenna (12", N Jack Connector) + 10FT Low Loss YMR240 Cable, Omni Antenna Kit
Regular price
$27.99 USD
Regular price
$32.99 USD
Sale price
$27.99 USD
Unit price
/
per

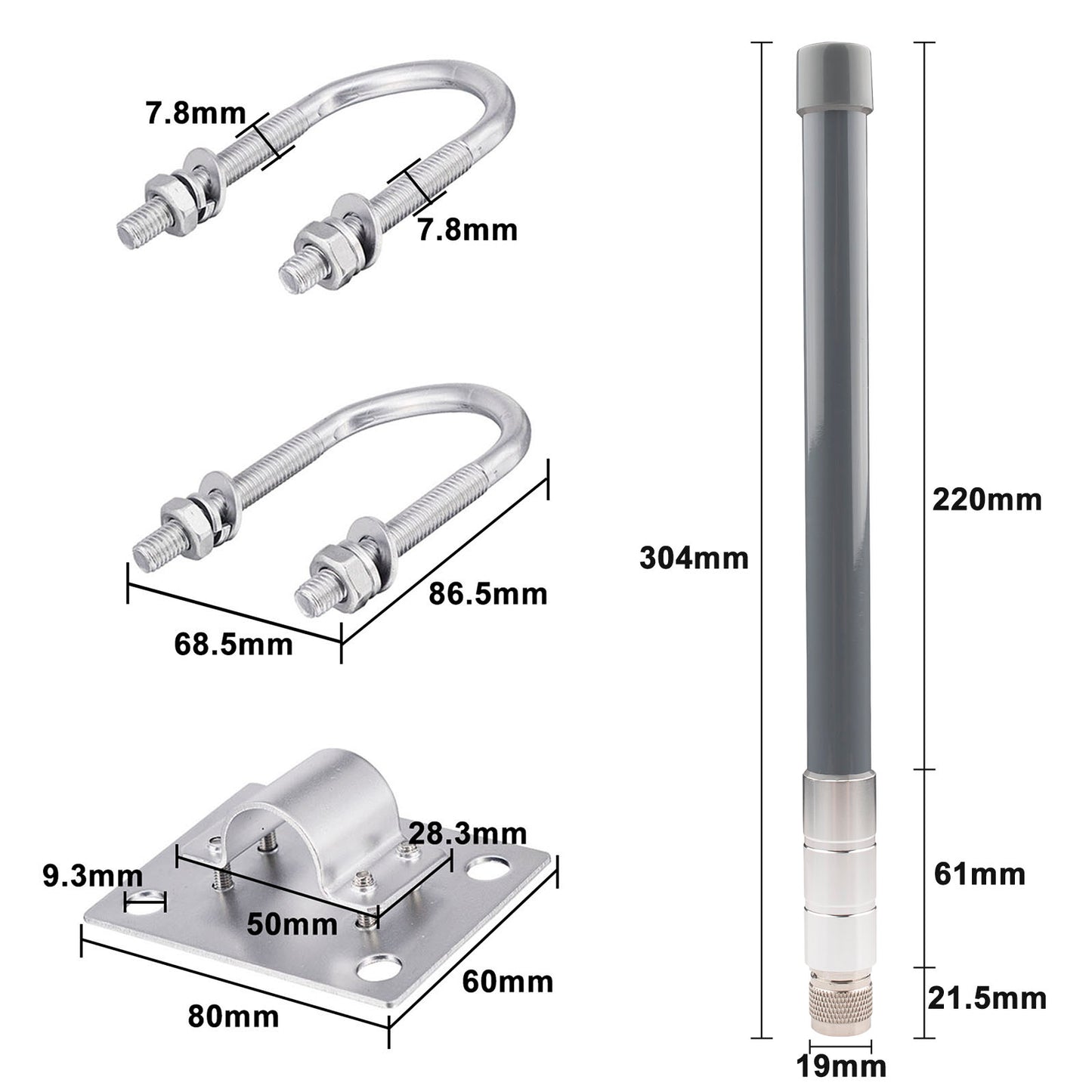

- 【Antenna Features】- Gain: 5dBi; Antenna Height: 30cm/12inch; Direction: Omni-directional; Frequency Range: 700-960MHz/ 1710-2700MHz; V.S.W.R: <2.5; fiberglass material.

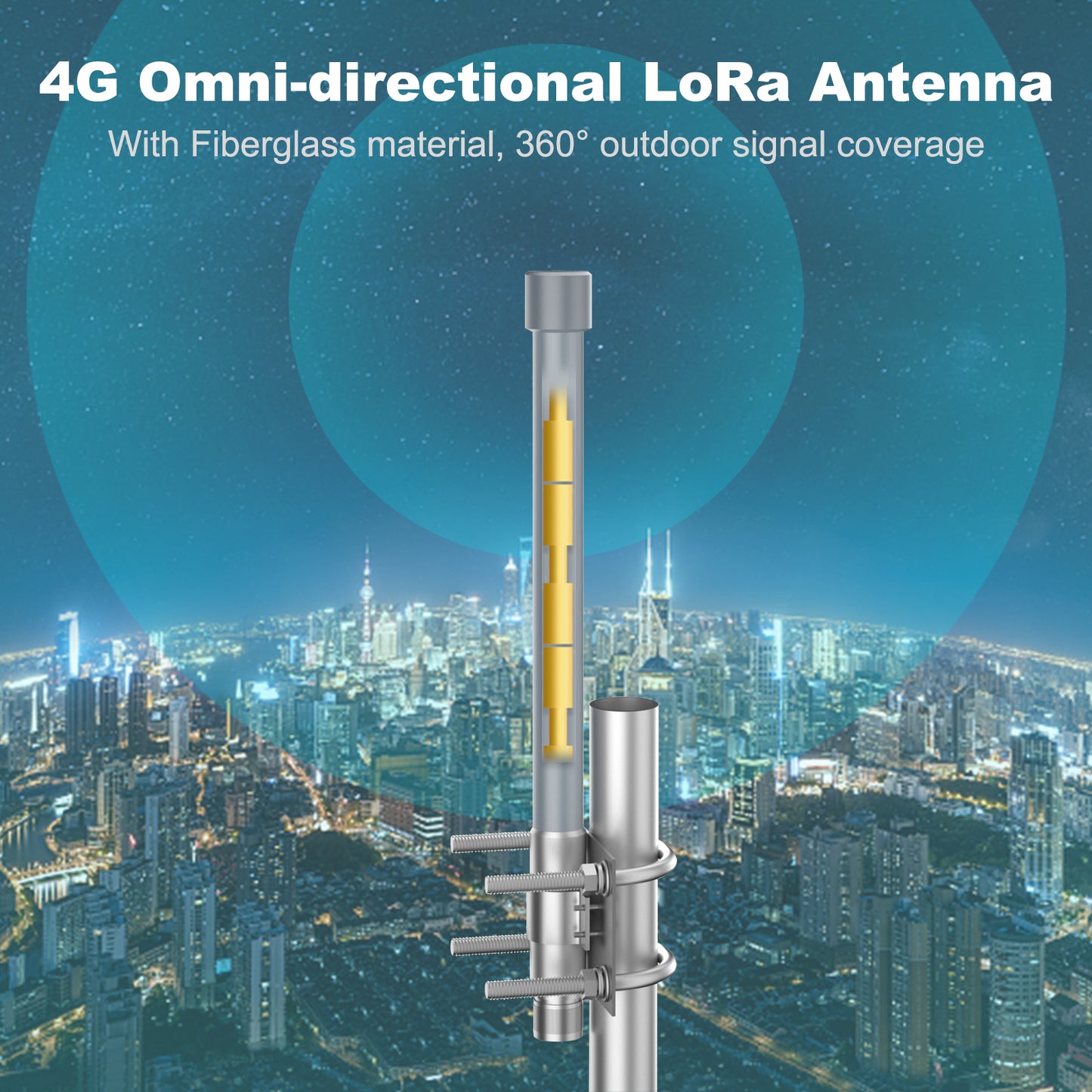

- 【High-performance Outdoor Antenna】- 4G Omni Antenna is made of high quality fiberglass material, which is lightweight, strong, corrosion-resistant, and IP67 waterproof for outdoor use in various harsh environments. The antenna gain of 5dBi provides more stable and efficient signal transmission, while the VSWR ≤ 2.5 reduces signal reflection and loss.
- 【Ultra-Low Loss】- The loss of 10ft YMR240 coaxial cable at 400MHZ signal frequency is 0.44dB and VSWR ≤ 1.12. YMR240 N-type coaxial cable features a significantly larger center conductor and a dual shield structure of aluminum foil and tinned copper braid, offering better signal retention than similarly sized RG58/RG8X cables(>0.52dB), It is recommended for high-power applications or for users who require the best performance from a flexible cable.
- 【Application】- The Multi-band antenna Covers a broad frequency range of 700-960MHz and 1710-2700MHz, making it suitable for a wide array of cellular applications including 2G, 3G, 4G, and certain 5G frequencies, is common used in Cellular Routers and Modems, LTE networks installations, IoT Devices, LTE/4G Security Cameras, Signal Boosters/Repeaters.
-

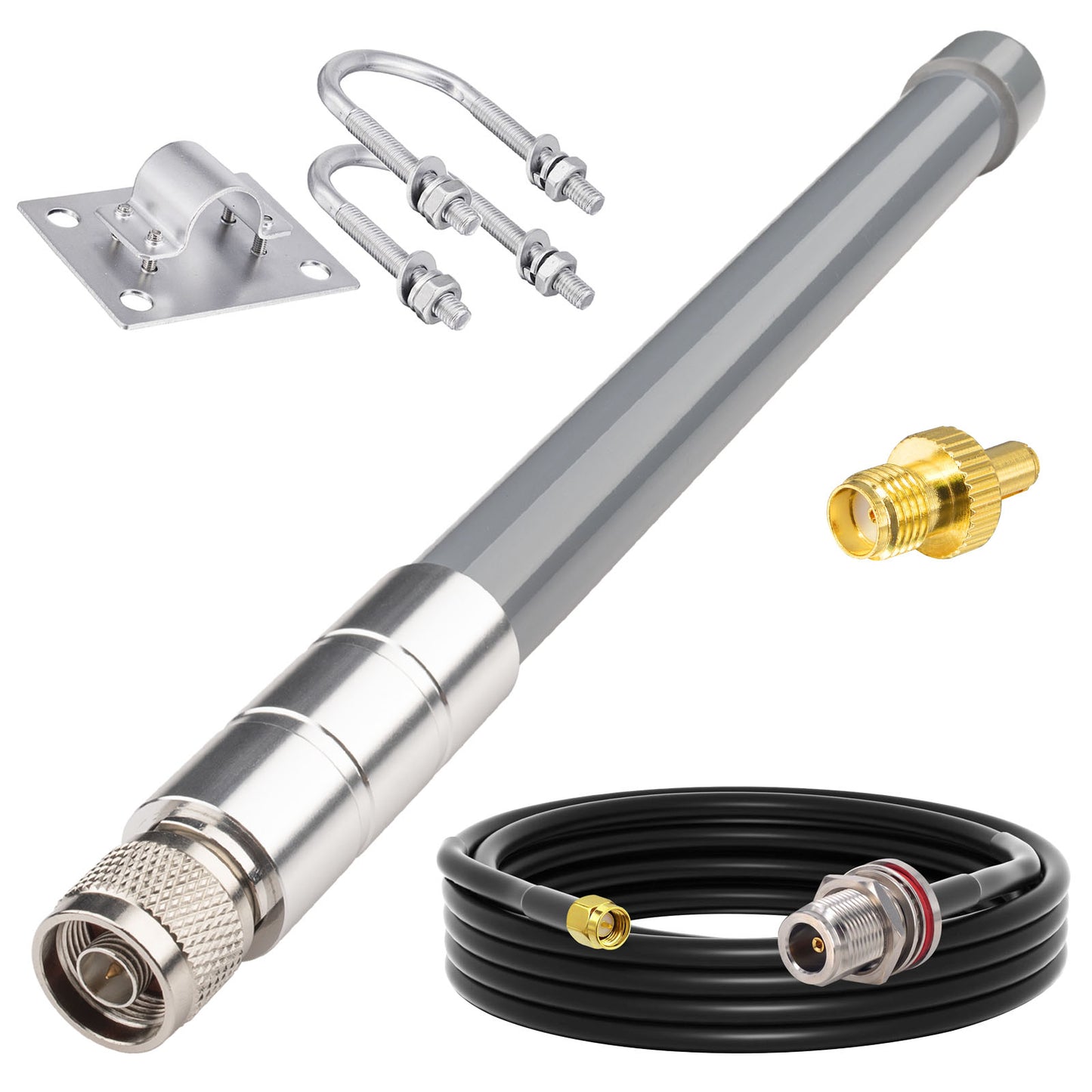

【Packing List】1* 5dBi Fiberglass Antenna, 1* Low Loss YMR240 SMA Male to N Female Cable,1* TS9 Adapter,1* Mount Set.
