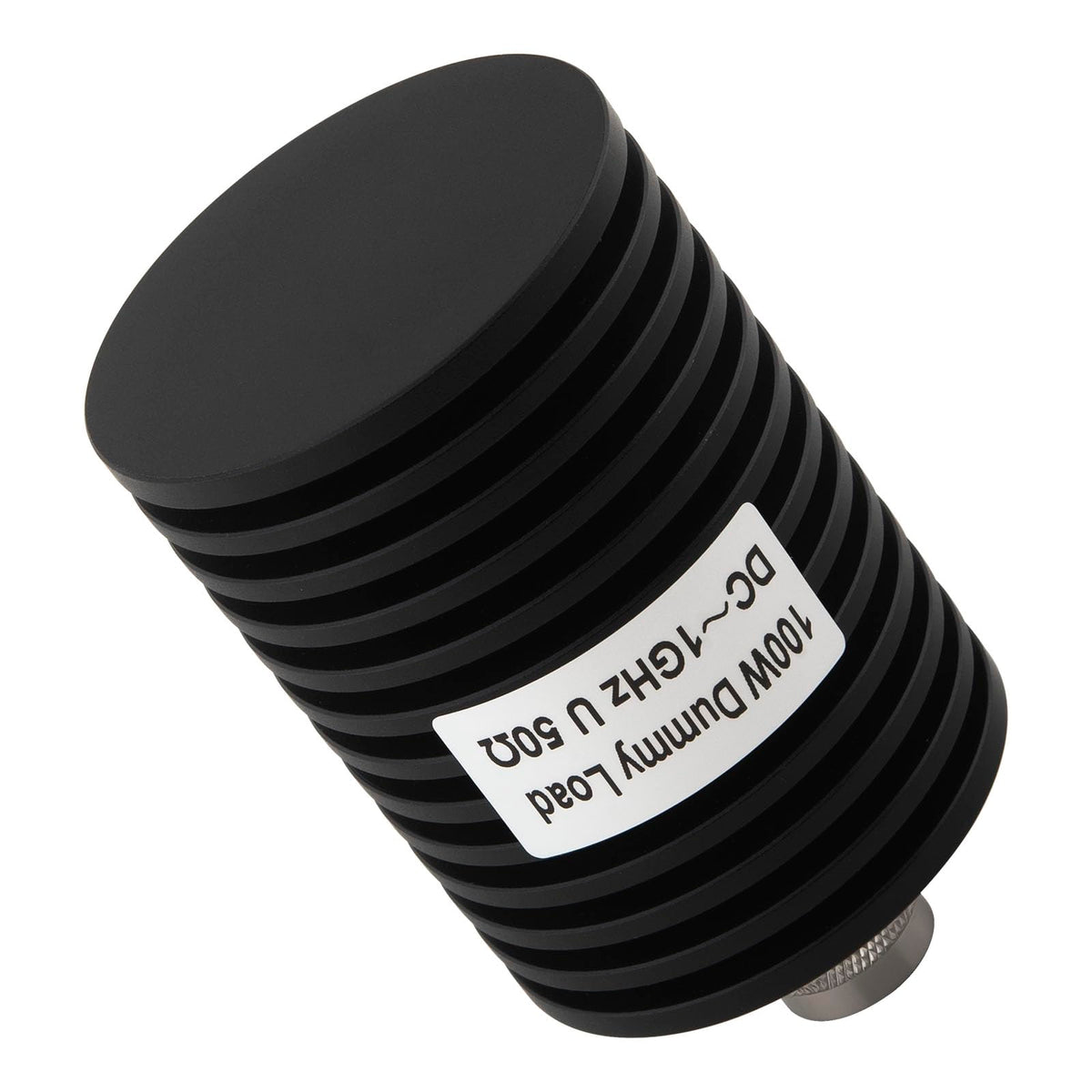

YOTENKO RF Dummy Load, 100W, 50 Ohm, PL259 Male, DC-1GHz

YOTENKO 100W 50 Ohm Dummy Load with a UHF male PL259 connector, designed for RF termination and testing from DC to 1GHz.

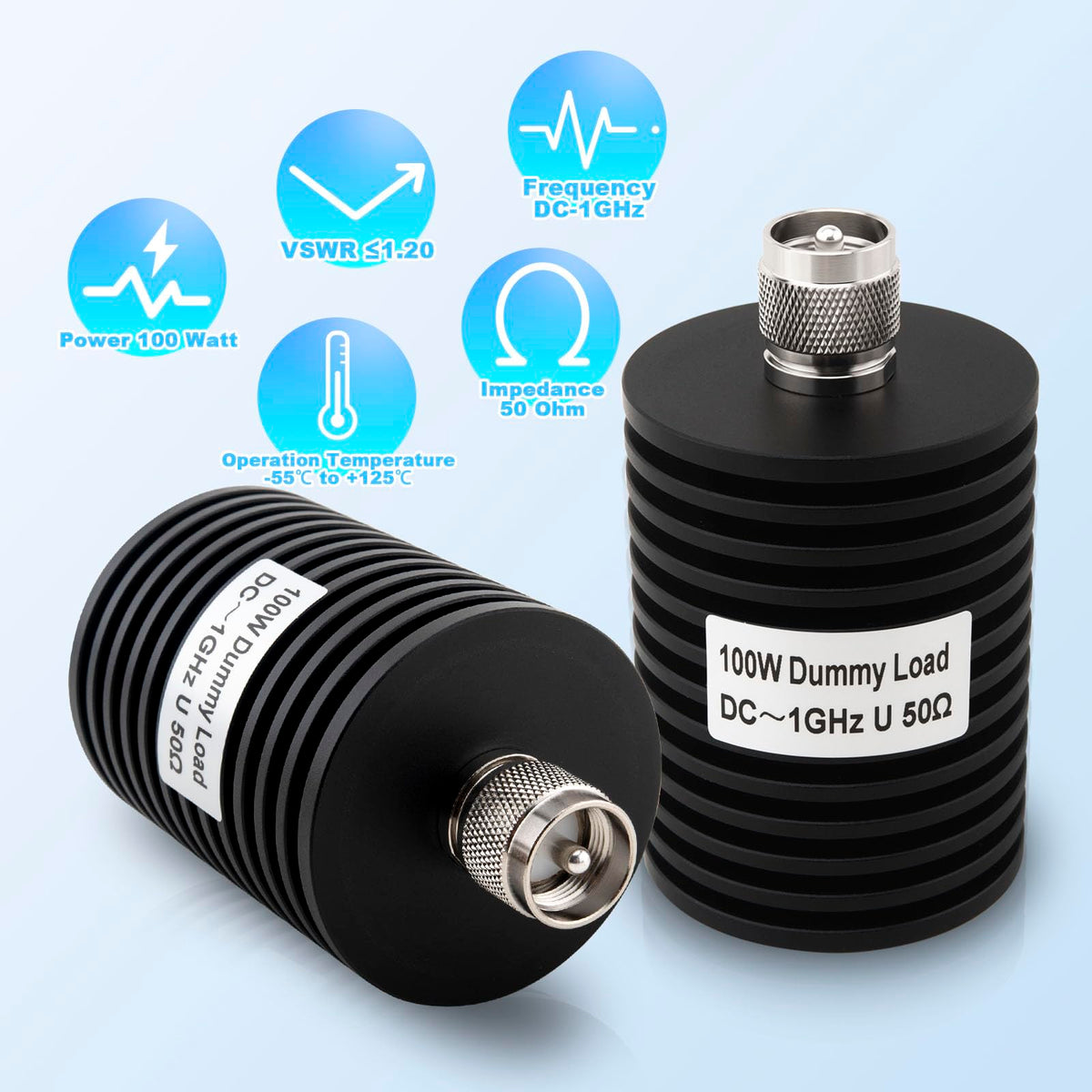

Features

• 100W high-power absorption: Handles 100W continuous power for high-power transmitters and industrial RF plasma systems.
• DC–1GHz wide frequency range: 50Ω impedance and VSWR ≤1.20 for AM/FM broadcast, aviation and laboratory testing.
• Wide operating temperature: -55°C to +125°C; tested through 1,000 hot-cold cycles.
• Compact rugged design: Black anodized aluminum housing with an IP65 rating for resistance to corrosion, dust and moisture.

Specifications

• Model / SKU: K0126
• Power handling: 100W continuous
• Impedance: 50Ω ±1Ω
• Frequency range: DC–1GHz
• VSWR: ≤1.20 at 1GHz

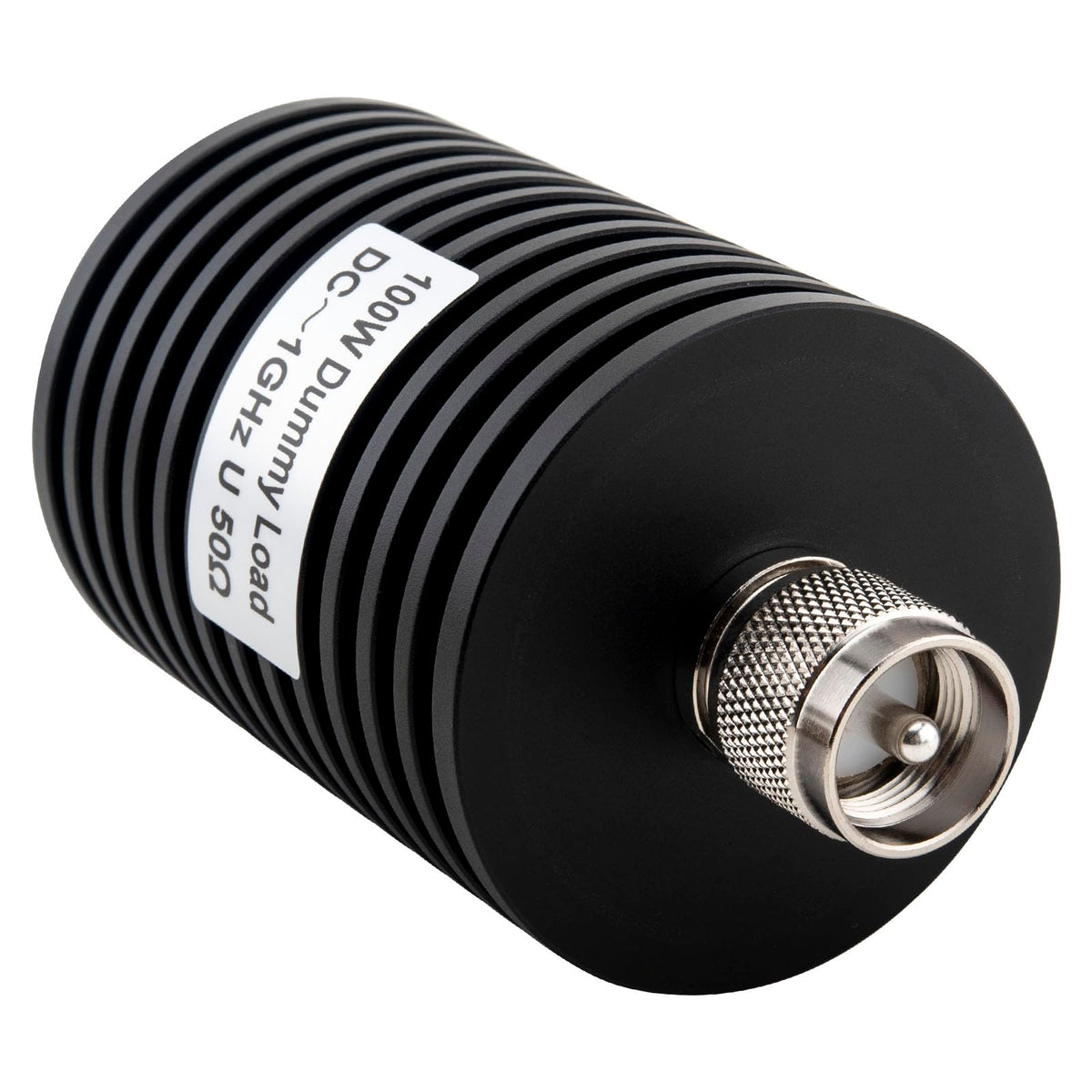

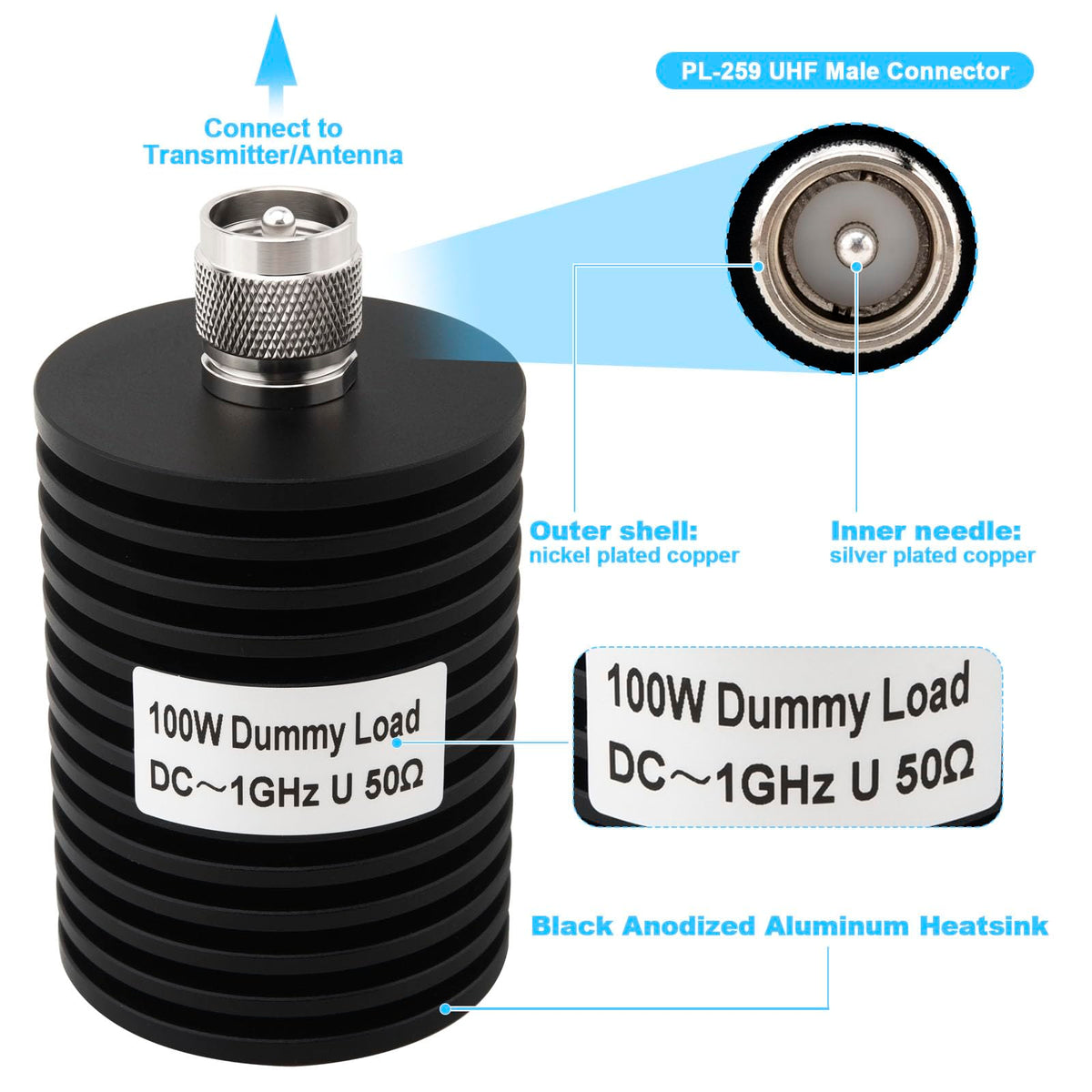

• Input connector: UHF male (PL259)
• Output: Integrated termination; no output port
• Heatsink: Black anodized aluminum; thermal conductivity 160W/m·K
• Operating temperature: -55°C to +125°C
• IP rating: IP65
• Mating cycles: ≥5,000
• Corrosion resistance: ASTM B117 salt spray test, 500 hours

Applications

• Industrial RF heating systems
• AM/FM/shortwave broadcast transmitters
• 4G/5G base station testing within the rated DC–1GHz range
• Military and aviation communication systems
